Honda CR-V: Checking and Maintaining Wiper Blades / Changing the Rear Wiper Blade Rubber

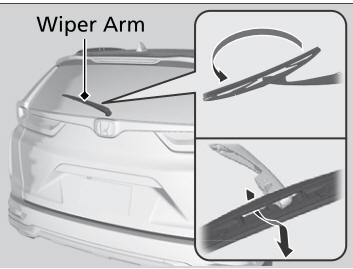

- Raise the wiper arm off.
- Pivot the bottom end of the holder up until
it comes off from the wiper arm.
![Honda CR-V. Changing the Rear Wiper Blade Rubber](images/changing_the_rear_wiper_blade_rubber-398/1/honda_crv_changing_the_rear_wiper_blade_rubber_1189.jpg)

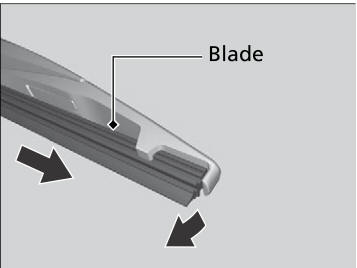

- Slide the blade out of the holder.
![Honda CR-V. Changing the Rear Wiper Blade Rubber](images/changing_the_rear_wiper_blade_rubber-398/1/honda_crv_changing_the_rear_wiper_blade_rubber_1190.jpg)

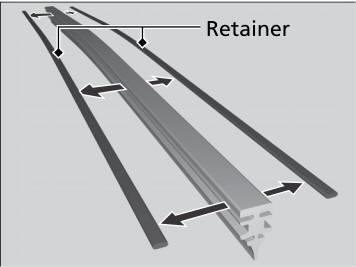

- Remove the retainers from wiper blade and mount to a new rubber blade.
![Honda CR-V. Changing the Rear Wiper Blade Rubber](images/changing_the_rear_wiper_blade_rubber-398/1/honda_crv_changing_the_rear_wiper_blade_rubber_1191.jpg)

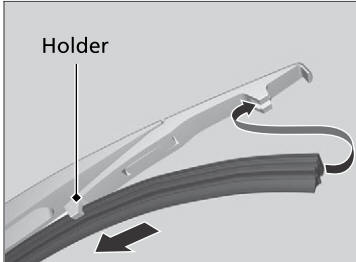

- Slide the new wiper blade onto the holder.
- Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.
![Honda CR-V. Changing the Rear Wiper Blade Rubber](images/changing_the_rear_wiper_blade_rubber-398/1/honda_crv_changing_the_rear_wiper_blade_rubber_1192.jpg)
NOTICE
Avoid dropping the wiper arm; it may damage the rear window.
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the
hard surfaces
of the blade may scratch the window glass...
