Honda CR-V: Interior Lights/Interior Convenience Items / Wireless Charger*

Honda CR-V 2017-2022 Owner's Manual / Controls / Interior Lights/Interior Convenience Items / Wireless Charger*

* Not available on all models

To use the wireless charger, the power mode must be in ACCESSORY or ON. Charge a compatible device on the area indicated by the Honda CR-V. Wireless Charger* mark as follows:

Honda CR-V. Wireless Charger*

  1. To turn the system on and off, press and hold the Honda CR-V. Wireless Charger* (power) button.
    • When the system is activated, the green indicator light comes on.
  2.  Place the device you want to charge on the charging area.
    • The system will automatically start charging the device, and the amber indicator light will come on.
    • Make sure that the device is compatible with the system, and placed with the chargeable side in the center of the charging area.
  3. When charging is completed, the green indicator light will come on.
    • Depending on the device, the amber indicator light will stay on.

CAUTION

Metal objects between the charge pad and the device to be charged will get hot and can burn you.

  • Always remove foreign objects from the charge pad before charging the device.
  • Be sure the surface is clear of dust and other debris before charging.
  • Do not spill liquids (i. e. water, drinks, etc.) on the charger and the device.
  • Do not use oil, grease, alcohol, benzine or thinner for cleaning the charge pad.
  • Do not cover the system with towels, clothing, or other objects while charging etc.
  • Avoid spraying aerosols which may come in contact with the charge pad surface.

This system consumes a lot of power. Do not use the system for a long time when the engine is not running. This may weaken the battery, making it difficult to start the engine.

When using the wireless charger, check the user’s manual that came with the compatible device you want to charge.

When charging does not start

Perform one of the solutions in the following table.

Honda CR-V. Wireless Charger*

NOTICE

Do not place any magnetic recording media or precision machines within the charging area while charging.

The data on your cards such as credit cards can be lost because of the magnetic effect. Also precision machines such as watches can go wrong.

“Qi” and Honda CR-V. Wireless Charger* marks are the registered trademarks owned by Wireless Power Consortium (WPC).

In the following cases, charging may stop or not start:

  • The device is already fully charged.
  • The temperature of the device is extremely high while charging.
  • You are at a place that emits strong electromagnetic wave or noises such as TV station, electric power plant, or gas station.

A device may not charge if the size or shape of its chargeable side is not appropriate for use with the charging area.

Not all devices are compatible with the system.

During the charging phase, it is normal for the charging area and device to heat up.

Charging may be briefly interrupted when:

  • All the doors and the tailgate are closed

    - to avoid interference with the proper functioning of the smart entry system.

  • The position of the device is altered.

Do not charge more than one device at a time on a charging area.

FCC statement

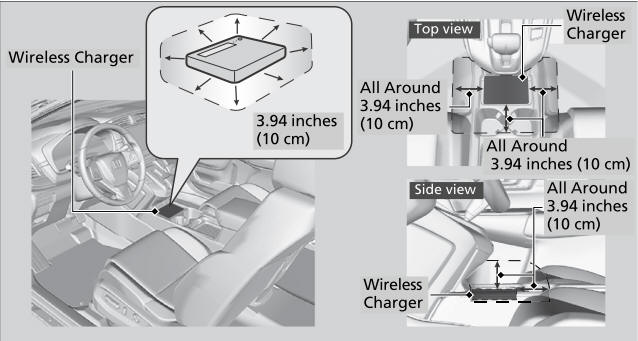

RF Exposure Notice: This wireless charger complies with FCC RF exposure guidelines at the distance of 3.94 inches (10 cm).

Keep a distance of at least 3.94 inches (10 cm) between all occupants and the wireless charger when charging.

Don't remove the wireless charger yourself; contact a dealer for assistance.

Honda CR-V. Wireless Charger*

This product complies with the appropriate requirements or the required standards of FCC (Federal Communication Commission), described below:

This device complies with Part 18 of the FCC rules. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used per the instructions, may cause harmful interference to radio communications.

In order to use safely:

  • Remove any metal objects from the charge pad before charging a device.
  • Do not open the charger case.
  • Do not use the charger if it malfunctions. Contact a dealer.

If the charger interferes with radio communications, attempt to correct the interference:

  • Press and hold the switch on the charger for a few seconds to turn off the charger.

    Accessory Power Sockets

    The accessory power sockets can be used when the ignition switch is in ACCESSORY or ON *1 . *1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch...

    Coat Hook

    T..
